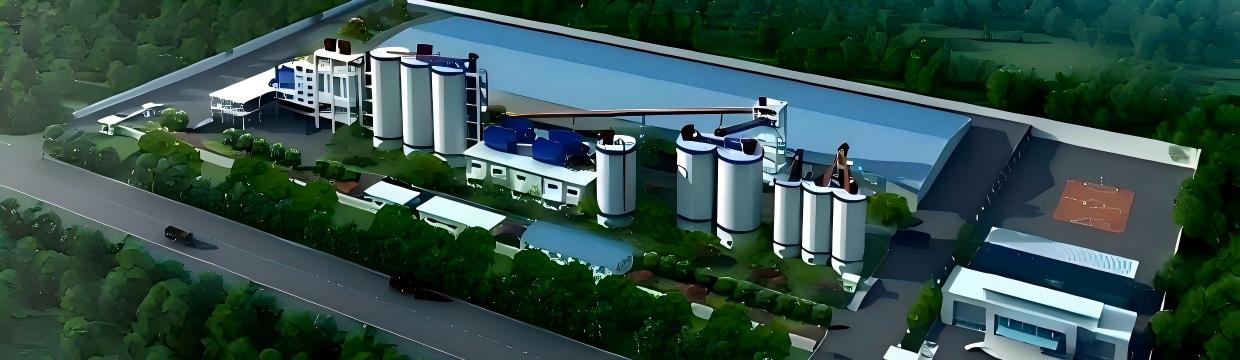

Cement Clinker
Grinding Plant
Industrial grinding solutions from 50 to 1,500 TPD, built around LM vertical roller mills or ball mill systems for clinker, gypsum, limestone, slag and blended cement production.
From Clinker to Finished Cement
A cement clinker grinding plant is the final major processing stage in cement production. Clinker is ground together with gypsum and, depending on the cement type, limestone, slag, fly ash or other mineral additives.
The grinding system is designed around the required capacity, cement type, product fineness, clinker properties, material moisture, plant layout and operating conditions.
- 50–1,500 TPD grinding plant configurations
- LM vertical roller mill solutions
- Ball mill closed-circuit solutions
- Grinding, classification and dust collection systems
- Customized equipment and process configuration

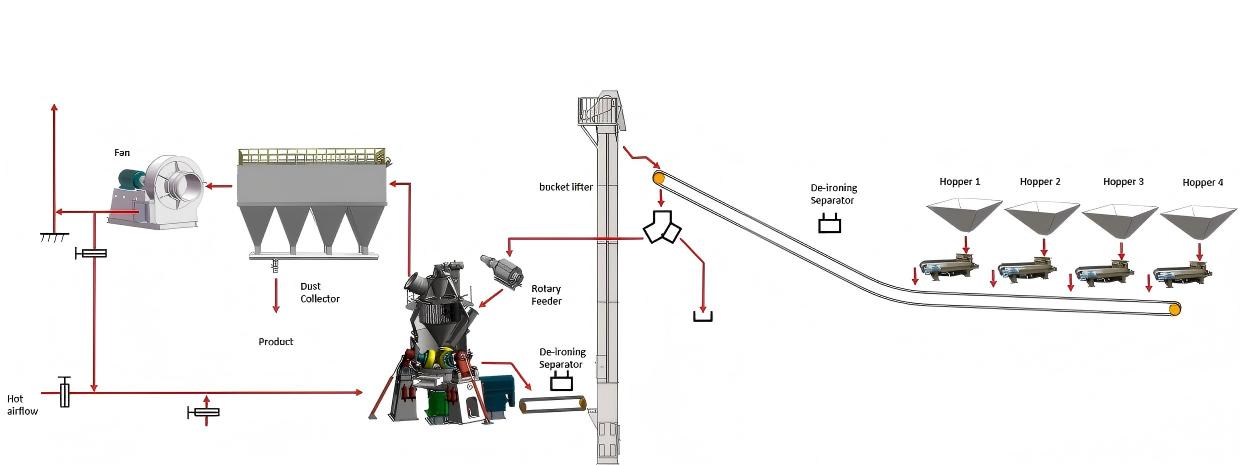

Cement Clinker Grinding Process

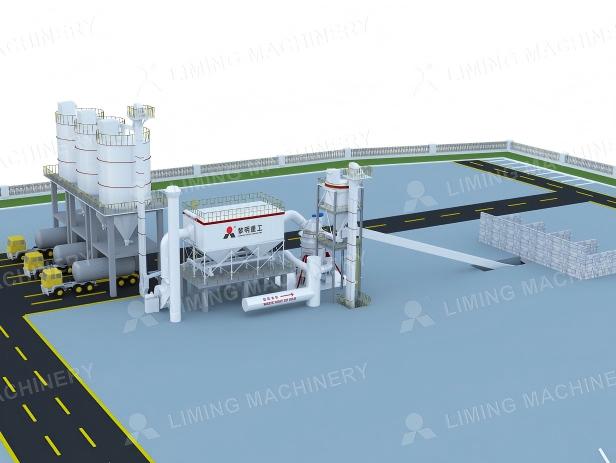

A typical grinding station combines material dosing, grinding, classification, dust collection, conveying and cement storage into one coordinated system.
Clinker Storage
Clinker is stored and supplied to the grinding system.
Dosing
Clinker, gypsum and additives are proportioned.
Grinding
Materials are ground in an LM mill or ball mill.
Classification
Finished particles are separated according to fineness.
Dust Collection
Process gas and fine particles are handled by filtration.
Cement Storage
Finished cement is conveyed to silos for dispatch.

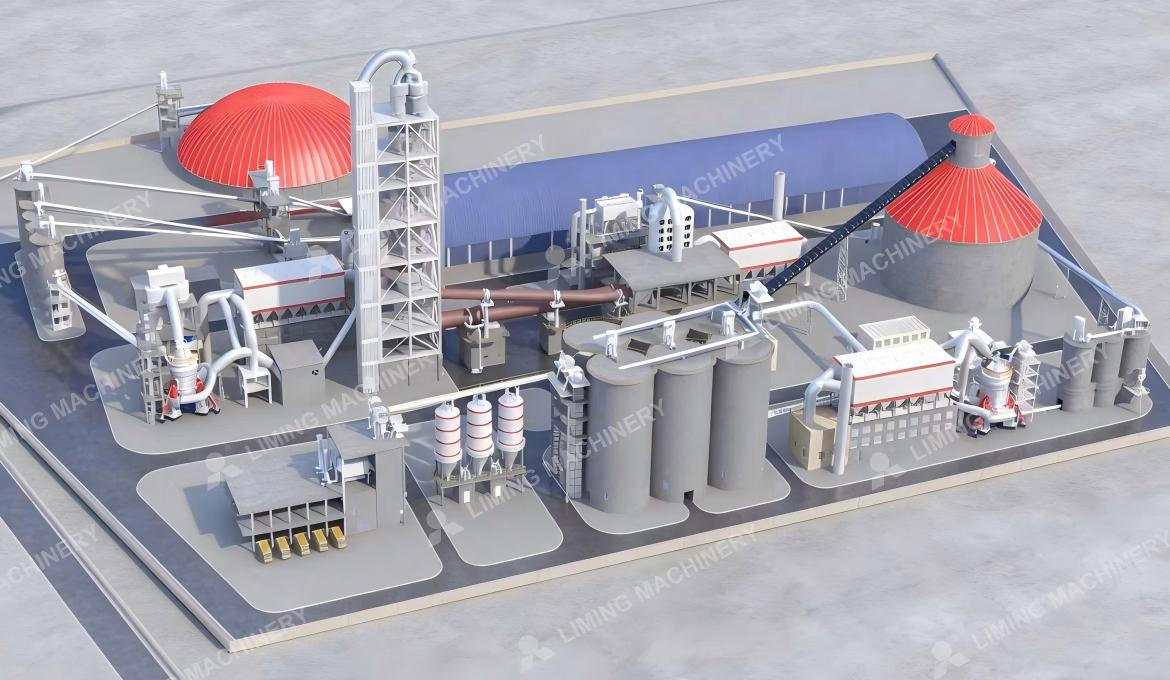

Main Equipment in a Clinker Grinding Plant
The final equipment configuration depends on capacity, cement type, grinding technology and the required plant scope.
LM Vertical Roller Mill
A compact grinding solution integrating grinding and classification for suitable clinker and blended cement applications.

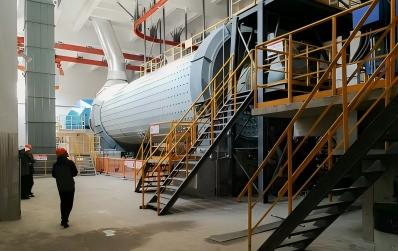

Ball Mill
A proven grinding technology commonly used in closed-circuit cement grinding systems with a separator.

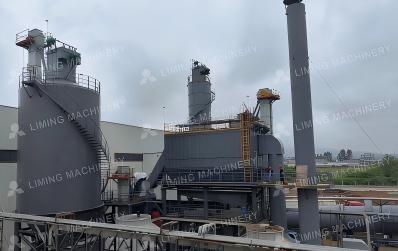

Auxiliary Systems
Feeding, conveying, classification, dust collection, fans, cement storage, electrical and automation systems.

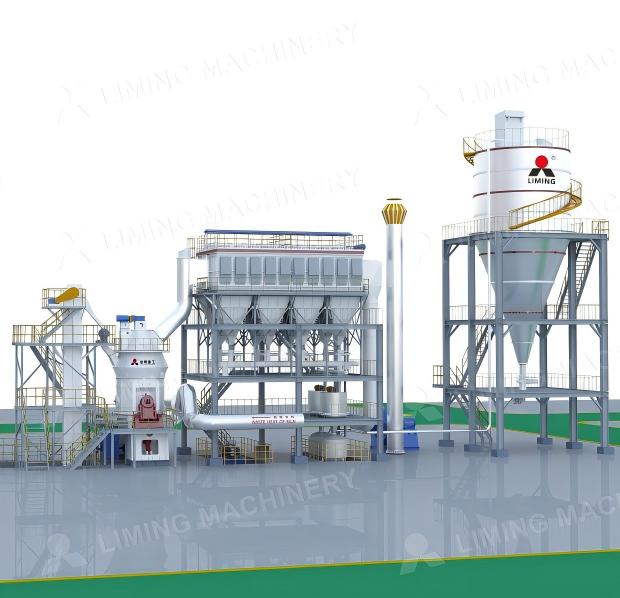

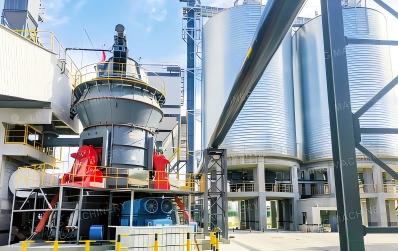

LM Vertical Roller Mill
The LM vertical roller mill is designed for efficient mineral grinding and can be configured for cement clinker and blended cement applications.
Its vertical arrangement combines grinding and classification within a compact process configuration, which can help reduce plant footprint and simplify the overall grinding circuit.

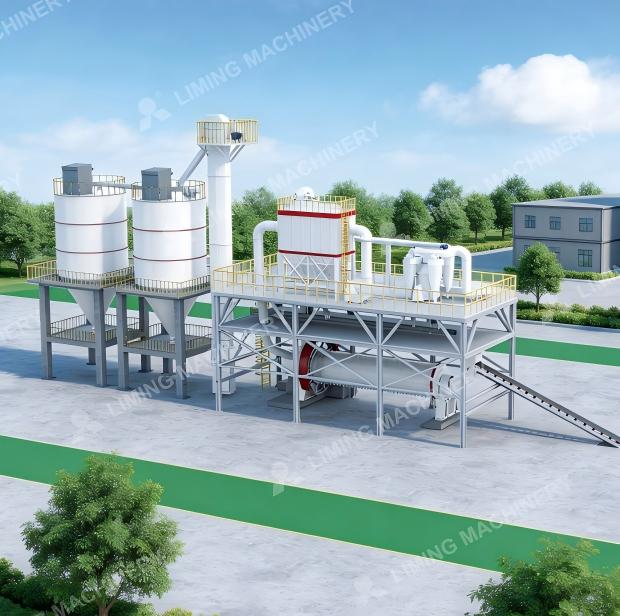

Ball Mill Grinding System
Ball mills remain an important option for cement clinker grinding, particularly for conventional closed-circuit grinding systems and projects where existing ball mill infrastructure is available.
A complete ball mill grinding circuit can include the mill, separator, feeding system, conveying equipment, dust collector, fans and cement storage system.
LM Vertical Roller Mill vs Ball Mill
The right grinding technology depends on the complete project rather than the main mill alone.
| Factor | LM Vertical Roller Mill | Ball Mill |
|---|---|---|
| Grinding principle | Vertical roller grinding | Grinding media inside a rotating mill |
| Classification | Integrated dynamic classification | Usually separate separator |
| Plant layout | Compact process configuration | Conventional grinding circuit |
| Energy considerations | Designed for efficient grinding | Depends on mill and complete circuit configuration |
| Maintenance | Rollers, grinding table and wear parts | Grinding media, liners and related components |
| Existing plant upgrade | Depends on available layout and process conditions | Strong option where ball mill infrastructure already exists |
| Best selection approach | Compare total investment, power consumption, maintenance, capacity, cement quality, layout and project conditions. | |
Cement Grinding Plant Capacity: 50–1,500 TPD
Select a capacity range based on your required daily cement production and discuss the appropriate grinding configuration with our engineers.
Small Grinding Station
Suitable for small-scale cement production and projects where a compact system is required.
Small Cement Grinding Plant
A practical capacity level for smaller regional cement grinding operations.
Small to Medium Plant
Suitable for projects requiring higher output while maintaining a relatively compact configuration.
Medium Grinding Station
A common project scale for independent cement grinding operations.
Medium-Scale Plant
Suitable for larger regional cement production and commercial grinding projects.
Large Grinding Station
Designed for higher production requirements and larger continuous operations.
Large Cement Grinding Plant
A major industrial grinding capacity requiring carefully matched process equipment.
High-Capacity Plant
Suitable for projects requiring substantial daily cement production.
High-Capacity Grinding Station
A large-scale configuration requiring optimized grinding, classification and material handling systems.
What Determines Cement Grinding Plant Cost?
A complete grinding plant quotation depends on the project scope and equipment configuration. The main cost factors include:
Main Grinding Equipment
- LM vertical roller mill or ball mill
- Dynamic separator
- Grinding system components
- Main drive and related equipment
Auxiliary Equipment
- Feeding systems
- Bucket elevators
- Belt conveyors
- Fans and dust collectors
Plant Infrastructure
- Cement silos
- Packing system
- Electrical system
- Automation and control
Project Services
- Engineering and technical service
- Installation and commissioning
- Spare parts
- Local civil construction conditions
Cement Clinker Grinding Plant Guides
Explore cement grinding processes, equipment, plant design, capacity solutions, investment and project information.
Plant Cost & Investment
Grinding Equipment
Grinding Process & Technology
Plant Design & Configuration
Capacity Solutions
Cement Grinding Materials
Cement Grinding Plant Projects
Replace the example below with your actual customer project data and photographs.

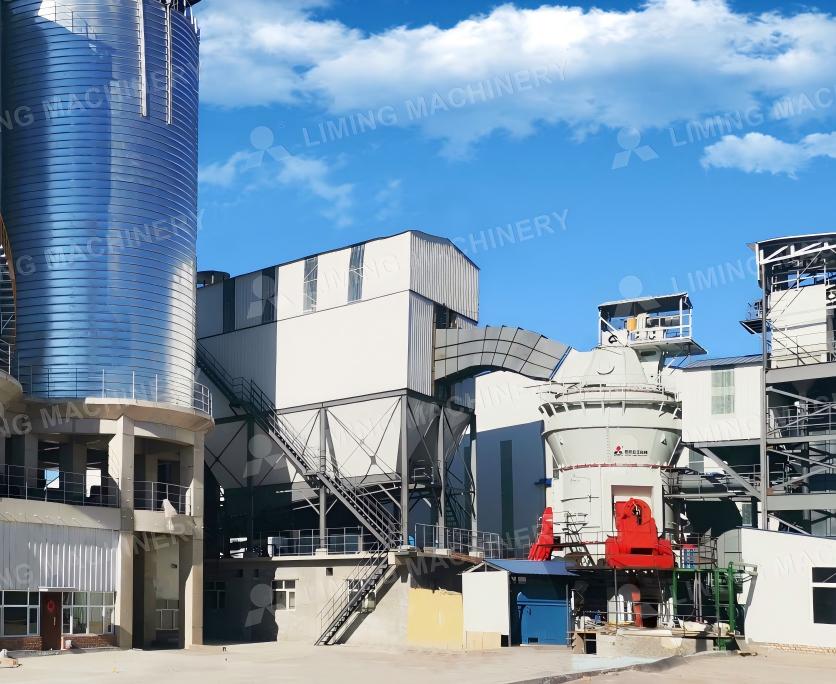

Cement Clinker Grinding Plant Project
The grinding system was configured according to the customer's required production capacity, cement product requirements and local plant conditions.
What Can Be Included in a Grinding Plant?
A complete project can be configured around the main grinding equipment and the customer's required plant scope.
Material Feeding
Clinker, gypsum and additive feeding and dosing systems.
Grinding System
LM vertical roller mill or ball mill according to the project.
Classification
Separator system for controlling finished product fineness.
Dust Collection
Bag filter and process air handling equipment.
Conveying
Bucket elevators, conveyors and material transfer systems.
Cement Storage
Cement silo, packing and bulk loading systems where required.
Cement Clinker Grinding Plant FAQ
What is a cement clinker grinding plant?
A cement clinker grinding plant is a facility where clinker is ground with gypsum and other mineral additives to produce finished cement. The plant normally includes feeding, grinding, classification, dust collection, conveying and cement storage systems.
What is the capacity range of a clinker grinding plant?
Grinding plants can be configured for different production requirements. This project range covers approximately 50 to 1,500 tons per day, with the actual equipment selection determined by material properties, cement type, fineness and required output.
Is an LM vertical roller mill suitable for cement clinker grinding?
Yes. LM vertical roller mills can be configured for cement clinker and blended cement grinding applications. They integrate grinding and classification into a compact process configuration.
What is the difference between an LM vertical roller mill and a ball mill?
An LM vertical roller mill uses vertical roller grinding with an integrated classifier, while a ball mill uses grinding media inside a rotating cylinder and is commonly operated with a separate separator. The appropriate choice depends on capacity, material properties, layout, investment and operating conditions.
How much does a cement clinker grinding plant cost?
There is no single fixed price. Total investment depends on capacity, grinding technology, auxiliary equipment, automation, dust collection, conveying, storage, installation, civil works and other project conditions. A project-specific quotation is recommended.
Can the plant grind clinker with gypsum and limestone?
Yes. Cement grinding systems can be configured to grind clinker together with gypsum, limestone, slag, fly ash and other suitable mineral additives according to the required cement product.
Need a Cement Clinker Grinding Plant?
Tell us your required capacity, clinker properties, cement type and target fineness. Our engineers can recommend a suitable LM vertical roller mill or ball mill configuration and prepare a project-specific solution.
