High Grinding Efficiency
Material-bed grinding provides an efficient route for continuous fine grinding of granulated blast furnace slag, supporting large-scale production.
GGBS Grinding Solutions

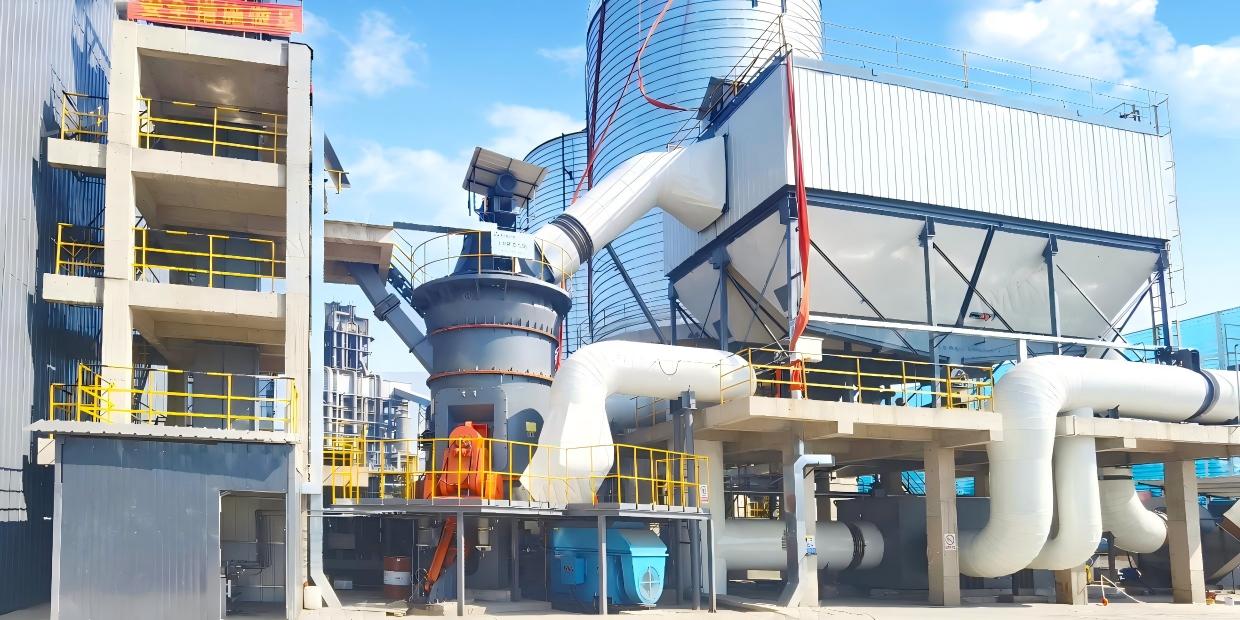

GGBS Grinding Plant
Efficient ground granulated blast furnace slag production with the LM Vertical Slag Mill — designed for stable product quality, integrated drying and grinding, and large-scale continuous production.

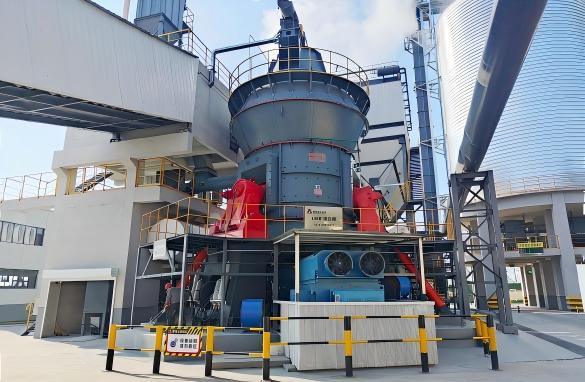

Understanding GGBS
Ground Granulated Blast Furnace Slag for Cement and Concrete
GGBS, also known as ground granulated blast furnace slag or GGBFS, is a finely ground cementitious material produced from granulated blast furnace slag. Its quality depends strongly on controlled grinding, classification and moisture management.
- Suitable for large-scale continuous slag powder production
- Stable fineness and specific surface area can be controlled according to the product specification
- Integrated drying and grinding helps simplify the process configuration
- Qualified GGBS can be used as a supplementary cementitious material

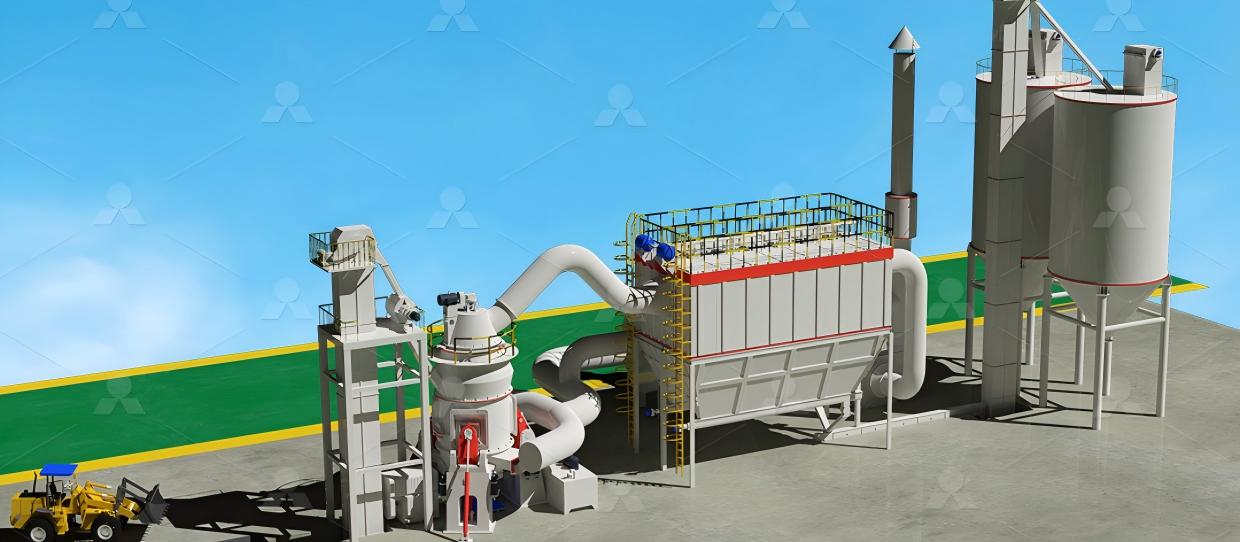

Production Process
How GGBS Is Produced
A well-designed GGBS grinding system coordinates feeding, drying, grinding, classification, dust collection and finished-product storage.
01
Raw Slag Storage
Granulated blast furnace slag is stored and supplied continuously to the grinding system.
02
Controlled Feeding
A stable feed rate helps maintain consistent mill operation and product quality.
03
Drying & Grinding
The LM vertical slag mill can combine hot-air drying with efficient material-bed grinding.
04
Classification
The integrated classifier separates qualified fine particles from coarse material for further grinding.
05
Dust Collection
A dedicated dust collection system captures the finished powder and supports a clean production environment.
06
Storage & Dispatch
Finished GGBS is conveyed to silos for bulk handling or subsequent packing and dispatch.
Grinding Technology
Why Use a Vertical Roller Mill for GGBS?
GGBS production requires efficient fine grinding, stable classification and controlled moisture. A vertical grinding system brings these functions together in a compact process configuration.
Drying During Grinding
Hot air can be introduced into the grinding system so that drying and grinding can be carried out in an integrated process.
Integrated Classification
The classifier works with the mill to separate qualified particles and return coarse material for further grinding.
Stable Product Quality
Grinding parameters and classification can be adjusted to meet the required fineness and specific surface area.
Large Capacity
The LM Vertical Slag Mill range covers approximately 7–200 t/h for different GGBS production requirements.
Centralized Operation
An integrated process reduces the number of separate grinding and classification units and supports centralized control.
Featured Equipment

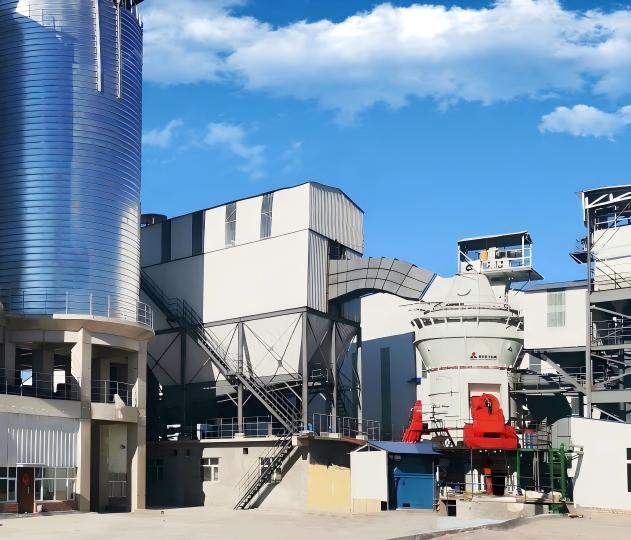

LM Vertical Slag Mill
The LM Vertical Slag Mill is developed for efficient grinding of granulated blast furnace slag. Its process configuration combines grinding, classification and drying functions to support reliable GGBS production.
- Capacity range: approximately 7–200 t/h
- Suitable for large-scale continuous slag grinding
- Integrated drying, grinding and classification
- Adjustable product fineness according to project requirements
- Designed for stable operation and centralized control
Capacity Selection
LM Vertical Slag Mill Range
| Model | Approx. Capacity | Typical Role |
|---|---|---|
| LM19-2N | 7–15 t/h | Small-scale GGBS production |
| LM24-2N | 11–25 t/h | Small to medium plants |
| LM34-3N | 22–55 t/h | Medium to large plants |
| LM44-4N | 75–135 t/h | Large-scale production |
| LM58-4N | 130–200 t/h | Large-scale GGBS plants |
*Final equipment selection depends on raw material characteristics, operating conditions, required product quality and actual production requirements.
Plant Configuration
GGBS Grinding Plant Configuration
A complete plant is configured around the required capacity, raw slag condition, product specification, storage requirements and site conditions.
Core Process Equipment
Raw Slag HopperFeeding SystemLM Slag MillHot-Air SystemClassifier
Bag FilterBucket ElevatorFinished SiloConveyorsPacking System
Key Design Considerations
- Required annual or hourly production capacity
- Raw slag moisture and feed characteristics
- Required fineness and specific surface area
- Available fuel or hot-air source when drying is required
- Finished product storage and dispatch method
- Local electrical, civil and environmental requirements
Product Quality
Control the Quality of GGBS Powder
The final product specification should be established before equipment selection. Fineness, specific surface area, moisture and particle-size distribution all influence the grinding system configuration.
Specific surface area and GGBS grade requirements should be confirmed according to the applicable local or project standard. The final mill configuration is selected after reviewing the complete technical conditions.
| Specific Surface Area | Can be controlled according to the required product specification |
| Final Moisture | ≤1% under the applicable reference condition* |
| Product Fineness | Adjusted through grinding and classification parameters |
| Particle Distribution | Managed by the integrated classifier and grinding system |
| Product Grade | S95 / other grades according to applicable standards and project requirements |
Featured Project

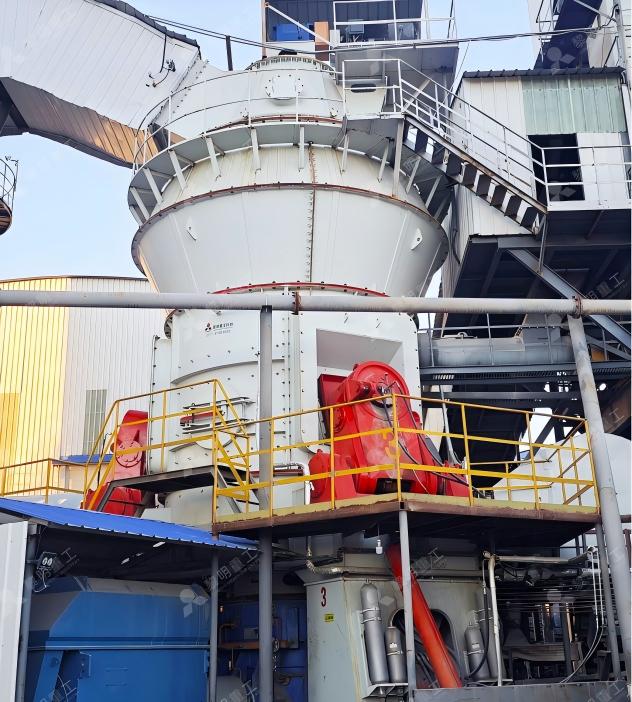

600,000 T/Y GGBS Grinding Plant
A large-scale slag grinding project demonstrating the application of the LM Vertical Slag Mill for GGBS production.
Project Case
Large-Scale Ground Granulated Blast Furnace Slag Production
This project was designed for high-volume GGBS production using an LM Vertical Slag Mill. The grinding system provides a continuous route from granulated blast furnace slag to finished GGBS for use as a concrete mineral additive.
The project illustrates how a vertical slag grinding system can be configured for large-scale production while maintaining controlled product quality and an integrated process flow.
More Projects
More Slag Grinding Projects
GGBS Resources
Guides & Solutions for GGBS Production
Practical information covering GGBS production, grinding technology, product quality, plant design and equipment selection.
01 · PRODUCTION
GGBS Production Process: From Blast Furnace Slag to GGBS
Read Guide →02 · GUIDE
How Is GGBS Made? A Complete Guide to GGBS Production
Read Guide →03 · PROCESS
GGBS Grinding Process: How to Produce High-Quality Slag Powder
Read Guide →04 · EQUIPMENT
GGBS Grinding Mill: How to Choose the Right Slag Grinding Equipment
Read Guide →05 · EQUIPMENT
Vertical Roller Mill for GGBS Grinding: Working Principle and Advantages
Read Guide →06 · SOLUTION
GGBS Grinding Plant: Equipment, Process Flow and Plant Layout
Read Guide →07 · QUALITY
GGBS Fineness and Blaine: What You Need to Know
Read Guide →08 · QUALITY
S95 vs S105 GGBS: What Is the Difference?
Read Guide →09 · TECHNOLOGY
How to Improve GGBS Grinding Efficiency and Reduce Energy Consumption
Read Guide →10 · PLANT DESIGN
How to Design a GGBS Grinding Plant?
Read Guide →11 · CAPACITY
100,000–600,000 T/Y GGBS Grinding Plant: Capacity Selection Guide
Read Guide →12 · PLANNING
GGBS Grinding Plant Cost: What Factors Affect the Price?
Read Guide →Frequently Asked Questions
GGBS Grinding Plant FAQ
Answers to common questions about GGBS production, slag grinding equipment and plant planning.
What is GGBS?
GGBS, or Ground Granulated Blast Furnace Slag, is a finely ground cementitious material produced from granulated blast furnace slag. It is widely used as a supplementary cementitious material in cement and concrete applications.
How is GGBS produced?
GGBS is produced through controlled handling, drying when required, grinding and classification of granulated blast furnace slag, followed by dust collection and finished-product storage.
What is the difference between GGBS and GGBFS?
GGBS and GGBFS are commonly used terms for ground granulated blast furnace slag. GGBS is widely used internationally, while GGBFS is also common in technical and North American contexts.
What mill is used for GGBS grinding?
Vertical roller mills are widely used for large-scale slag grinding because grinding, drying and classification can be integrated into one system. Liming Heavy Industry offers the LM Vertical Slag Mill for GGBS production.
What is the capacity of the LM Vertical Slag Mill?
The LM Vertical Slag Mill range covers approximately 7–200 t/h. The final model is selected according to capacity, raw material characteristics, product requirements and operating conditions.
Can the LM Vertical Slag Mill dry slag during grinding?
Yes. The grinding system can introduce hot air to support drying while grinding and classification take place in the integrated system.
What fineness is required for GGBS?
Fineness and specific surface area depend on the required GGBS grade, application and applicable standard. These requirements should be confirmed before the mill and classifier are selected.
What factors affect the cost of a GGBS grinding plant?
Capacity, required product quality, raw slag moisture, mill model, drying and hot-air requirements, dust collection, storage, automation, civil works and installation conditions can all affect the total plant cost.
Planning a GGBS Grinding Plant?
Share your required capacity, GGBS fineness or specific surface area, raw slag condition and project location. Our team can help you evaluate a suitable LM vertical slag grinding system.
* Reference technical figures. Actual performance depends on raw material characteristics, operating conditions, product requirements and final system configuration.
